Inspecting Changes

The Working Copy view lists your project's current working files.

Choosing a View Mode

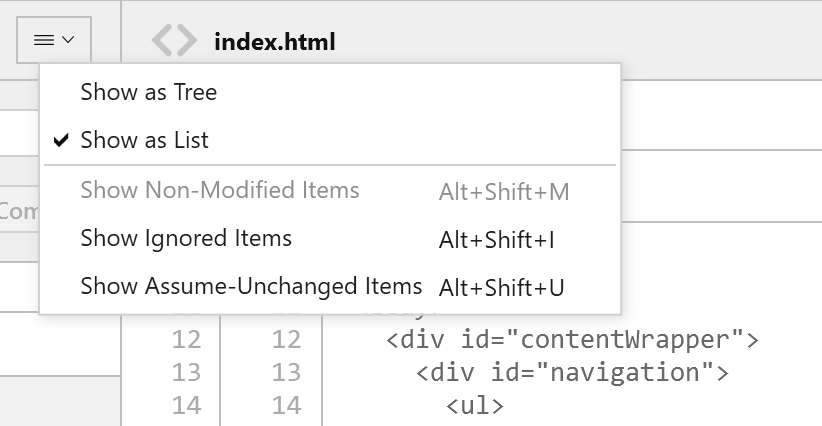

view-modes

The view mode button above the commit area (or the "View" menu) allows you to configure how exactly you want to view your project's working copy files:

  • only modified files, in a flat list
  • only modified files, in a tree / folder view
  • all files (including non-modified items) in a tree / folder view

Getting an Overview of Local Changes

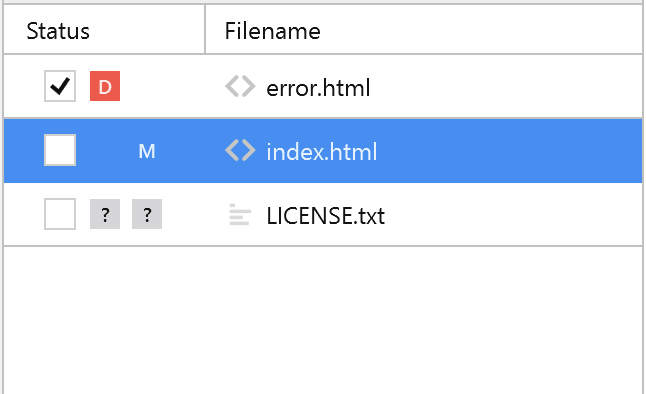

modified-list

The "Status" column shows the type of modification:

  • M for modified
  • D for deleted
  • A for new and added
  • R for renamed
  • C for copied
  • ? for untracked (not under version control, yet)
  • U for unmerged (in conflict state, currently)
  • T for typechange
  • ! for ignored or excluded items (if you chose to list them)


Inspecting a Change in Detail

Select a modified file in the list to see its exact changes (presented as a "diff") on the right:

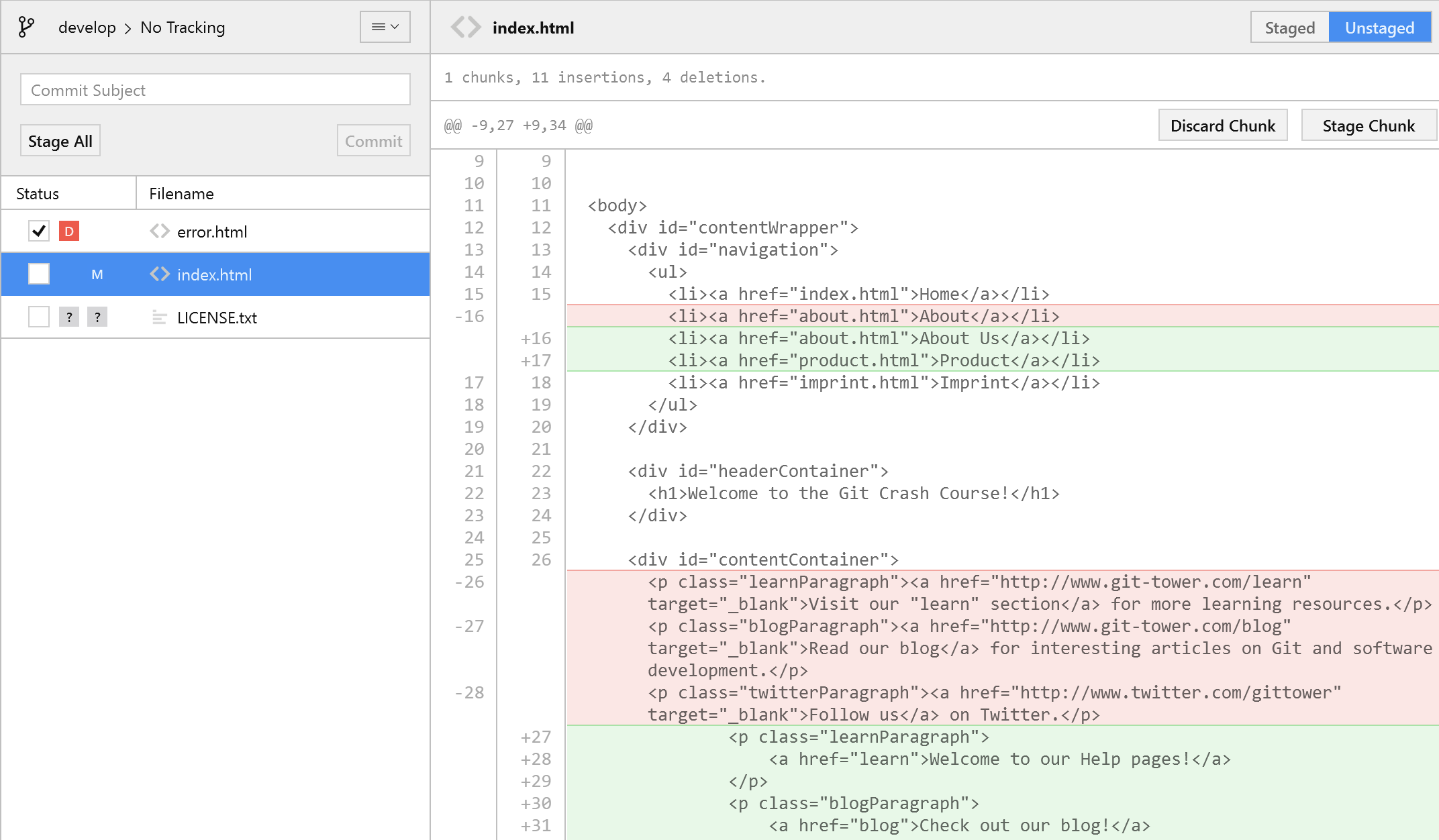

diff

In a nutshell, and very simplified, here's how a diff can be read:

  • Lines in red (prepended with a "-") represent a file's content before the change
  • Lines in green (prepended with a "+") represent the content after the change
  • If a section in the diff contains both red and green lines, it means that the content was modified.
  • If just a green line is present (with no corresponding red lines) it means that this line was added.
  • If just a red line is present (with no corresponding green lines) it means that this line was deleted.


How to Read a Diff
To learn more about reading and understanding diffs, have a look at the chapter "Inspecting Changes with Diffs" on learn-git.com


Viewing Diffs in an External Application

When changes and their diff representations get complicated, you might want to use a dedicated diff tool application. In Tower's preferences window, on the "Git Config" tab, you can configure your tool of choice.
