The Working Copy view lists your project's current working files.
Choosing a View Mode

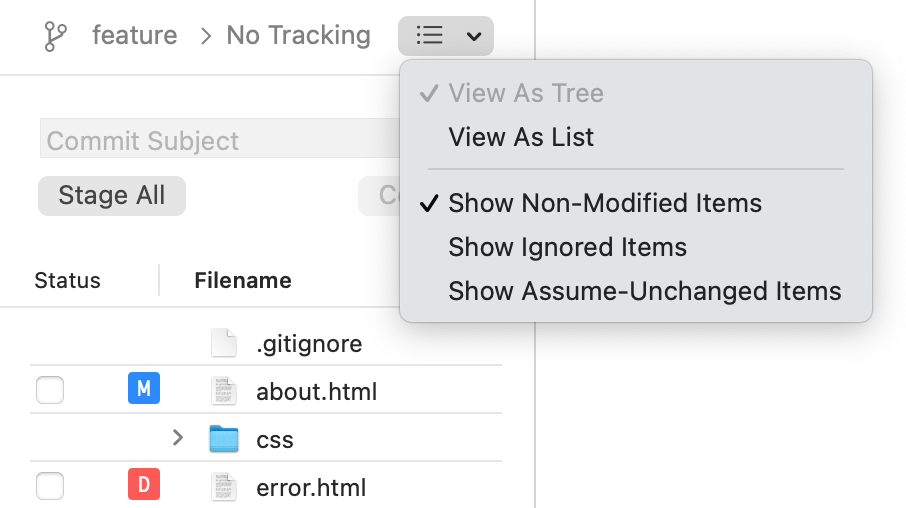

The view mode button above the commit area (or the "View" menu) allows you to configure how exactly you want to view your project's working copy files:
- only modified files, in a flat list
- only modified files, in a tree / folder view
- all files (including non-modified items) in a tree / folder view
Filtering the Shown Files / Paths
With the Search field in the top-right, you can filter your Working Copy for files or a path to narrow the list of items.
Getting an Overview of Local Changes

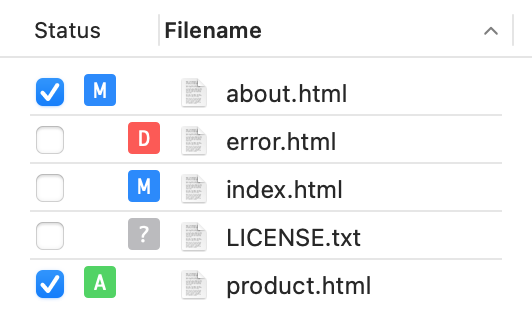

The "Status" column shows the type of modification:
- M for modified
- D for deleted
- A for new and added
- R for renamed
- C for copied
- ? for untracked (not under version control, yet)
- U for unmerged (in conflict state, currently)
- T for typechange
Inspecting a Change in Detail

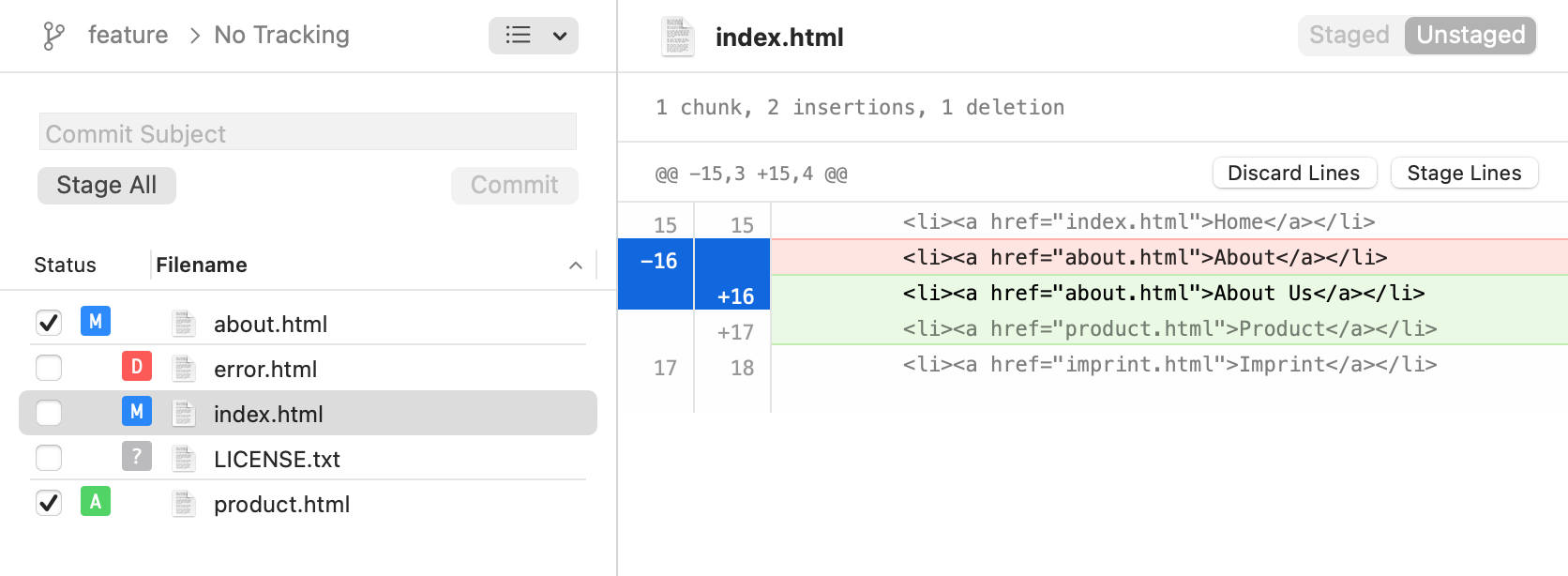

Select a modified file in the list to see its exact changes (presented as a "diff") on the right:
In a nutshell, and very simplified, here's how a diff can be read:
- Lines in red (prepended with a "-") represent a file's content before the change
- Lines in green (prepended with a "+") represent the content after the change
- If a section in the diff contains both red and green lines, it means that the content was modified.
- If just a green line is present (with no corresponding red lines) it means that this line was added.
- If just a red line is present (with no corresponding green lines) it means that this line was deleted.
How to Read a Diff
To learn more about reading and understanding diffs, have a look at the chapter "Inspecting Changes with Diffs" on learn-git.com

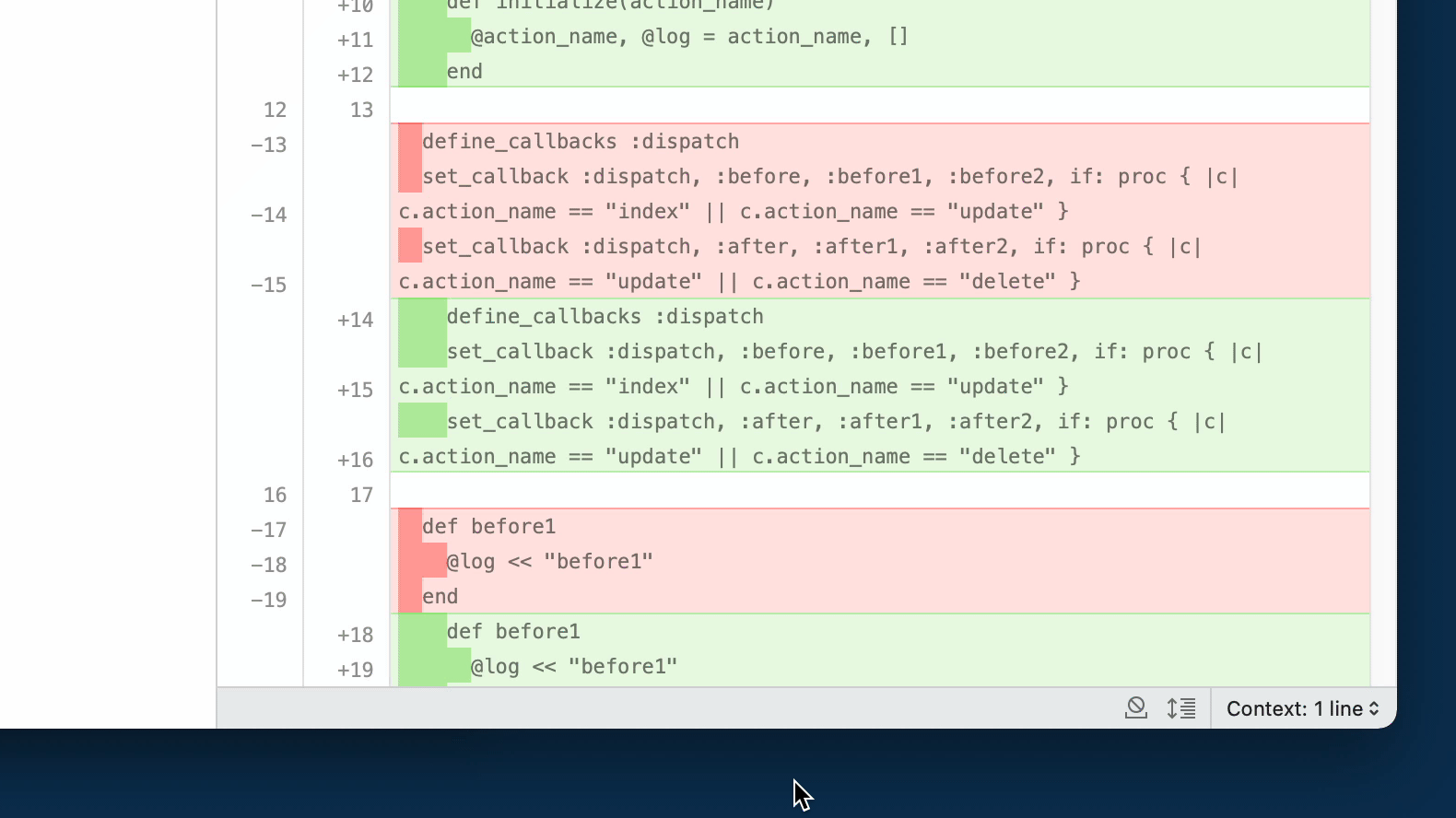

If you have many white space changes in your diff it can be tricky to see changes to the actual code. Using Tower's Show / Ignore Whitespace button, you can choose to show or hide white space changes.
Viewing Diffs in an External Application
When changes and their diff representations get complicated, you might want to use a dedicated diff tool application. In Tower's preferences window, on the "Git Config" tab, you can configure your tool of choice.
In the Working Copy view as well as in all history views, you can press ⌘ + ⇧ + D to open the changes of the current selection in your external diff tool.
